Print Placement Guide
For specific placement you must let us know and ensure it’s listed on your mockup before you approve it.
- Standard Print Width is 11″ wide and not taller than 16″. This applies to Front and Back.
- Hoodie Backs are 6″ from the collar to accommodate the hood which is approximately 8 fingers.
- Hoodie Fronts can be no taller than 10″ due to pocket.
- If Ladies or Youth sizes are involved, the print will need to be 10″ wide or less and 12” tall or less for kids.
- Distance from the collar is 3″ on all crewnecks which is approximately 4 fingers. V-Necks are 1.5″ from collar and approximately 2 fingers width.
- Left Chest is 4″ wide and is 3″ from collar. Logo should be centered between the center of the chest and shoulder.
- Short sleeve is 2.5″ wide; 3″ wide and no taller than 11″ on long sleeves.List Item
- Center all Artwork, unless the artwork is off balanced – then center it to the center mass of the artwork.
Popular Placements

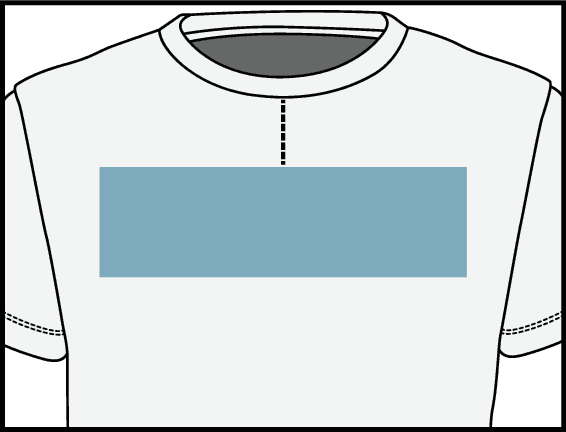

Center Chest
- 2½” DOWN FROM BOTTOM OF COLLAR
- (Approximately 3 fingers widths down)

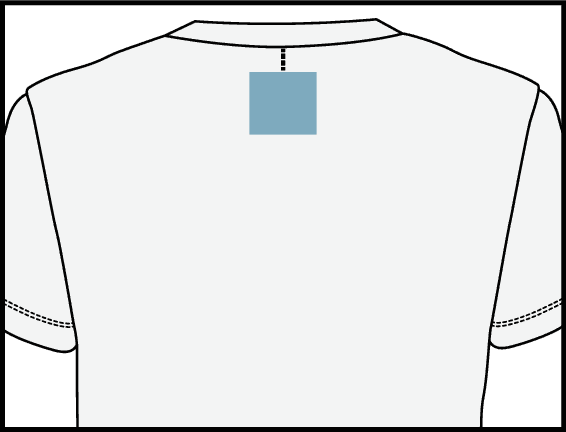

Nape
- ¾” DOWN FROM BOTTOM OF COLLAR
- (Approximately 1 finger width down)

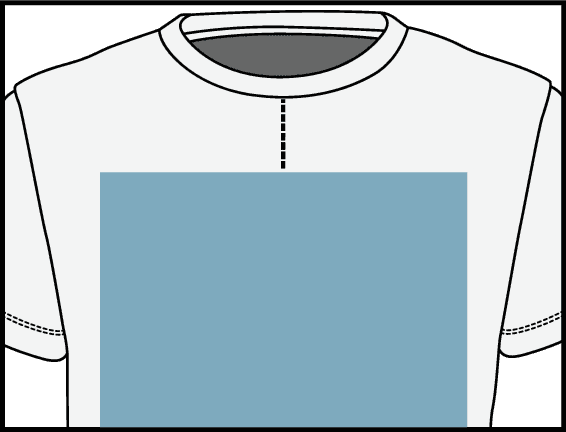

Full Front
- 3” DOWN FROM BOTTOM OF COLLAR
- (Approximately 3 finger width down)

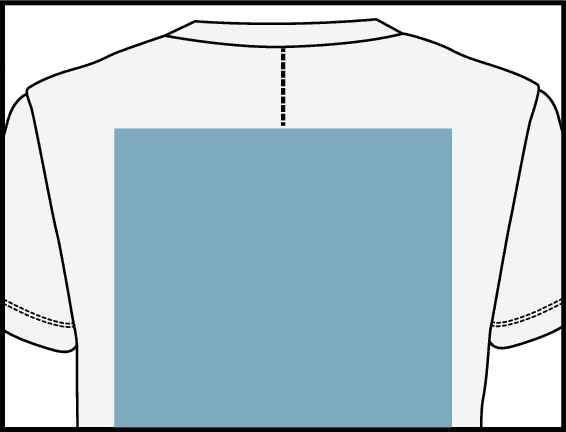

Full Back
- 3” DOWN FROM BOTTOM OF COLLAR
- (Approximately 3 fingers widths down)

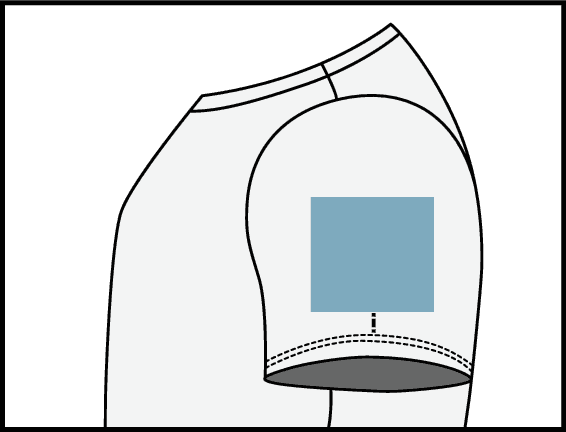

Sleeve (2½" wide)
- 1″ UP FROM SEAM
- (Approximately 1 finger width up)

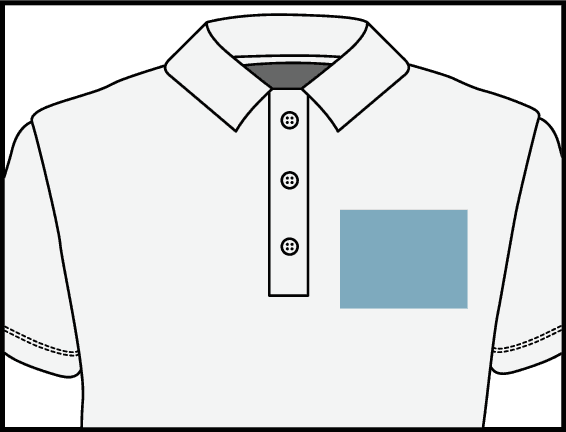

Left Chest
- 2½” DOWN FROM BOTTOM OF COLLAR
- (Approximately 3 finger widths down)
Print Measurements
Unisex
- STANDARD: 11”W x 15”H
- MAX: 12″W x 16″H
Ladies
- STANDARD: 9.5”W x 15”H
Youth
- STANDARD: 9.5”W x 14”H
- TODDLER: 6″W x 6″H (7″ MAX)
Infant
- STANDARD: 3.5”W x 6”H
V-Neck
- STANDARD: 11”W X 15”H
- (2” down from bottom of v-neck)
Above Pocket
- STANDARD: 3”W x 2.5”H
Left/Right Chest
- STANDARD: 3.5”W x 4”H
Short Sleeve
- STANDARD: 2.5”W x 2.5”H
Nape/Back Tag
- STANDARD: 3”W X 3”H
Long Sleeve
- STANDARD: 3”W X 11”H
Zip Up
- STANDARD: 6”W X 10”H
Pullover
- STANDARD: 12”W X 10”H
Hoodie Back
- STANDARD: 10”W X 10”H
Youth Hoodie
- STANDARD: 9”W X 6.5”H
- EXTRA SMALL: 7”W X 6.5”H
